一个简单的Maven模块结构是这样的：
-- app-parent：一个父项目（app-parent）聚合很多子项目（app-util，app-dao，appweb...）
|-- pom.xml
|
|-- app-core
||----pom.xml
|
|-- app-web
||----pom.xml
......

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91

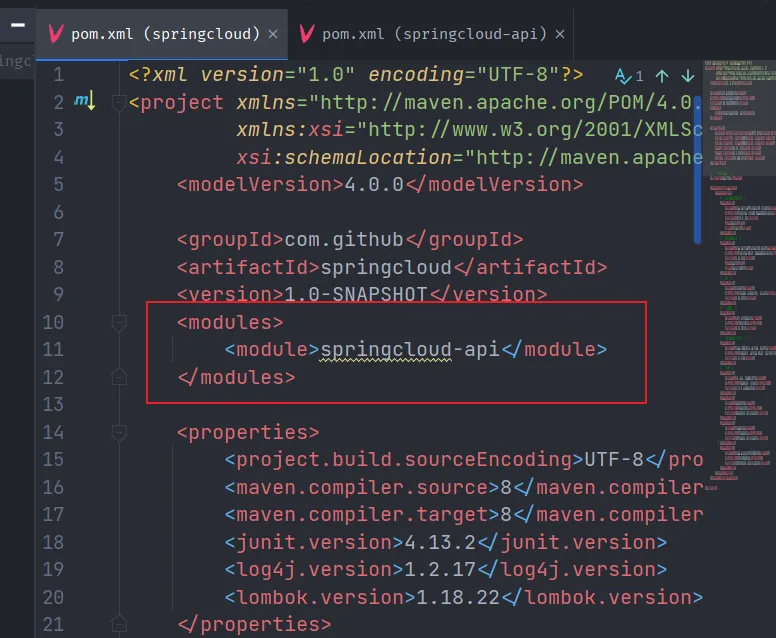

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.github</groupId>
    <artifactId>springcloud</artifactId>
    <version>1.0-SNAPSHOT</version>
    <modules>
    </modules>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <junit.version>4.13.2</junit.version>
        <log4j.version>1.2.17</log4j.version>
        <lombok.version>1.18.22</lombok.version>
    </properties>

    <!--打包方式  pom-->
    <packaging>pom</packaging>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>0.2.0.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--springCloud的依赖-->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Greenwich.SR1</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--SpringBoot-->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>2.1.4.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--数据库-->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>5.1.47</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid</artifactId>
                <version>1.1.10</version>
            </dependency>
            <!--SpringBoot 启动器-->
            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>1.3.2</version>
            </dependency>
            <!--日志测试~-->
            <dependency>
                <groupId>ch.qos.logback</groupId>
                <artifactId>logback-core</artifactId>
                <version>1.2.3</version>
            </dependency>
            <dependency>
                <groupId>junit</groupId>
                <artifactId>junit</artifactId>
                <version>${junit.version}</version>
            </dependency>
            <dependency>
                <groupId>log4j</groupId>
                <artifactId>log4j</artifactId>
                <version>${log4j.version}</version>
            </dependency>
            <dependency>
                <groupId>org.projectlombok</groupId>
                <artifactId>lombok</artifactId>
                <version>${lombok.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>

</project>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

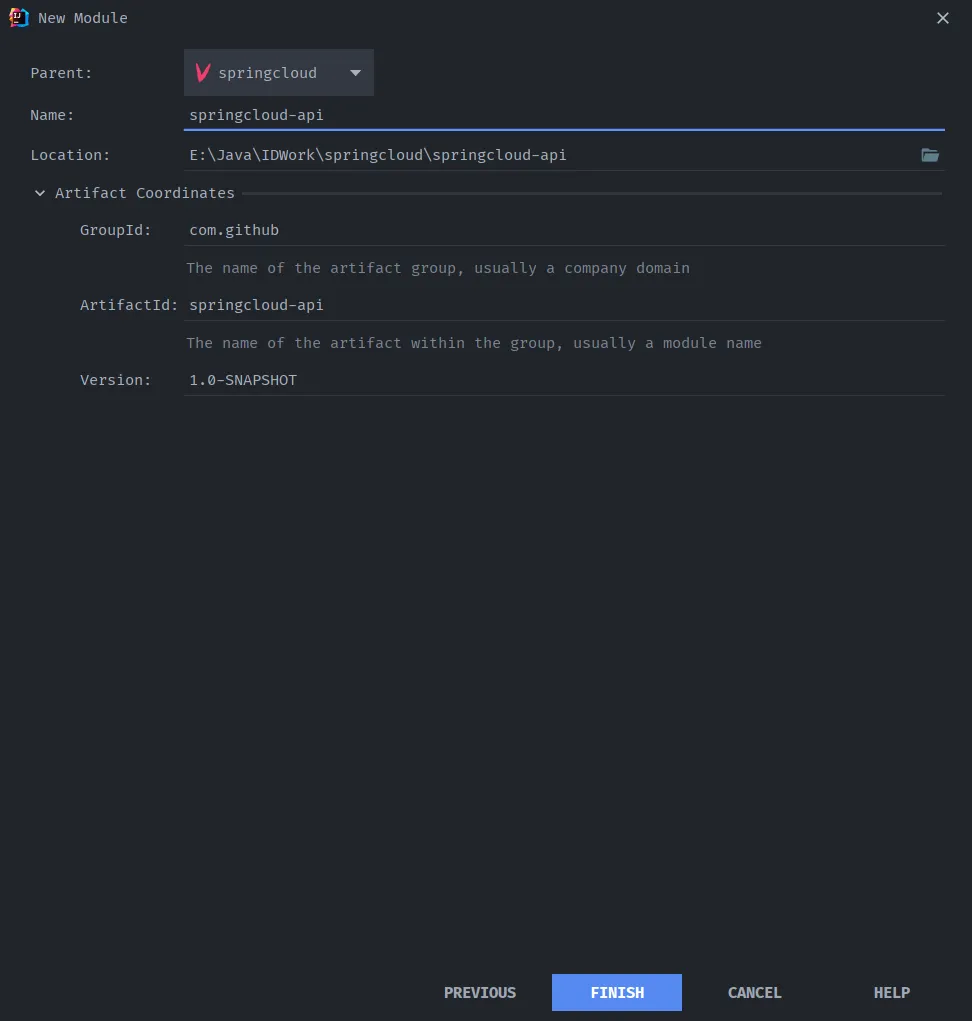

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloud</artifactId>
        <groupId>com.github</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <!--当前Module的名字-->
    <artifactId>springcloud-api</artifactId>

    <!--当前Module需要到的jar包，按自己需求添加，如果父项目已经包含了，可以不用写版本号-->
    <dependencies>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
    </dependencies>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

</project>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

CREATE TABLE dept ( deptno BIGINT NOT NULL PRIMARY KEY AUTO_INCREMENT, dname VARCHAR ( 60 ), db_source VARCHAR ( 60 ) );

INSERT INTO dept ( dname, db_source )
VALUES
	(
		'开发部',
	DATABASE ());
INSERT INTO dept ( dname, db_source )
VALUES
	(
		'人事部',
	DATABASE ());
INSERT INTO dept ( dname, db_source )
VALUES
	(
		'财务部',
	DATABASE ());
INSERT INTO dept ( dname, db_source )
VALUES
	(
		'市场部',
	DATABASE ());
INSERT INTO dept ( dname, db_source )
VALUES
	(
		'运维部',
	DATABASE ());

SELECT
	*
FROM
	dept;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

package com.github.pojo;

import lombok.Data;
import lombok.NoArgsConstructor;
import lombok.experimental.Accessors;

import java.io.Serializable;

@NoArgsConstructor
@Data
@Accessors(chain = true) // 链式写法
public class Dept implements Serializable {
    // Dept(实体类) orm mysql->Dept(表) 类表关系映射
    private Long deptno; // 主键
    private String dname; // 部门名称
    // 来自哪个数据库，因为微服务架构可以一个服务对应一个数据库，同一个信息被存到多个不同的数据库
    private String db_source;
    public Dept(String dname) {
        this.dname = dname;
    }

    /*
    链式写法：
        Dept dept = new Dept()
        dept.setDeptno(11L).setDname("school").setDb_source("DB01");
     */
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloud</artifactId>
        <groupId>com.github</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>springcloud-provider-dept-8001</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <dependencies>
        <!--引入自定义的模块，我们就可以使用这个模块中的类了-->
        <dependency>
            <groupId>com.github</groupId>
            <artifactId>springcloud-api</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
        </dependency>
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-core</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jetty</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-test</artifactId>
        </dependency>
        <!-- spring-boot-devtools热部署 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
        </dependency>
    </dependencies>

</project>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

server:
  port: 8001
# mybatis的配置
mybatis:
  config-location: classpath:mybatis/mybatis-config.xml
  type-aliases-package: com.github.pojo
  mapper-locations:
    - classpath:mybatis/mapper/**/*.xml
# spring的相关配置
spring:
  application:
    name: springcloud-provider-dept
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource # 数据源
    driver-class-name: org.gjt.mm.mysql.Driver # mysql驱动
    url: jdbc:mysql://localhost:3306/springcloud #数据库名称
    username: root
    password: root
    dbcp2:
      min-idle: 5 #数据库连接池的最小维持连接数
      initial-size: 5 #初始化连接数
      max-total: 5 #最大连接数
      max-wait-millis: 200 #等待连接获取的最大超时时间

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

    <settings>
        <!--开启二级缓存-->
        <setting name="cacheEnabled" value="true"/>
    </settings>

</configuration>

1
2
3
4
5
6

@Mapper
public interface DeptDao {
    public boolean addDept(Dept dept); // 添加一个部门
    public Dept queryById(Long id); // 根据id查询部门
    public List<Dept> queryAll(); // 查询所有部门
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.github.dao.DeptDao">

    <insert id="addDept" parameterType="Dept">
        insert into dept (dname,db_source) values (#{dname},DATABASE());
    </insert>

    <select id="queryById" resultType="Dept" parameterType="Long">
        select deptno,dname,db_source from dept where deptno = #{deptno};
    </select>

    <select id="queryAll" resultType="Dept">
        select deptno,dname,db_source from dept;
    </select>
</mapper>

1
2
3
4
5

public interface DeptService {
    public boolean addDept(Dept dept); // 添加一个部门
    public Dept queryById(Long id); // 根据id查询部门
    public List<Dept> queryAll(); // 查询所有部门
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

@Service
public class DeptServiceImpl implements DeptService {
    // 自动注入
    @Autowired
    private DeptDao deptDao;
    @Override
    public boolean addDept(Dept dept) {
        return deptDao.addDept(dept);
    }
    @Override
    public Dept queryById(Long id) {
        return deptDao.queryById(id);
    }
    @Override
    public List<Dept> queryAll() {
        return deptDao.queryAll();
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

@RestController
@RequestMapping("/dept")
public class DeptController {
    @Autowired
    private DeptService service;
    // @RequestBody
    // 如果参数是放在请求体中，传入后台的话，那么后台要用@RequestBody才能接收到
    @PostMapping("/add")
    public boolean addDept(@RequestBody Dept dept) {
        return service.addDept(dept);
    }

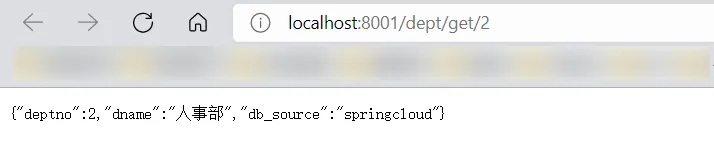

    @GetMapping("/get/{id}")
    public Dept get(@PathVariable("id") Long id) {
        return service.queryById(id);
    }
    @GetMapping("/list")
    public List<Dept> queryAll() {
        return service.queryAll();
    }
}

1
2
3
4
5
6

@SpringBootApplication
public class DeptProvider8001 {
    public static void main(String[] args) {
        SpringApplication.run(DeptProvider8001.class,args);
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloud</artifactId>
        <groupId>com.github</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>springcloud-consumer-dept-80</artifactId>
    <description>部门微服务消费者</description>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <dependencies>
        <dependency>
            <groupId>com.github</groupId>
            <artifactId>springcloud-api</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--热部署-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
        </dependency>
    </dependencies>

</project>

1
2

server:
  port: 80

1
2
3
4
5
6
7
8

@Configuration
public class ConfigBean {

    @Bean
    public RestTemplate getRestTemplate(){
        return new RestTemplate();
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

@RestController
public class DeptConsumerController {
    // 理解：消费者，不应该有service层
    // 使用RestTemplate访问restful接口非常的简单粗暴且无脑
    // （url，requestMap，ResponseBean.class） 这三个参数分别代表
    // REST请求地址，请求参数，Http响应转换被转换成的对象类型

    @Autowired
    private RestTemplate restTemplate;

    private static final String REST_URL_PREFIX = "http://localhost:8001";
    @RequestMapping("/consumer/dept/add")
    public boolean add(Dept dept){
        return
                restTemplate.postForObject(REST_URL_PREFIX+"/dept/add",dept,Boolean.class);
    }

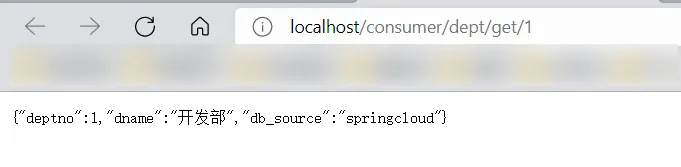

    @RequestMapping("/consumer/dept/get/{id}")
    public Dept get(@PathVariable("id") Long id){
        return
                restTemplate.getForObject(REST_URL_PREFIX+"/dept/get/"+id,Dept.class);
    }

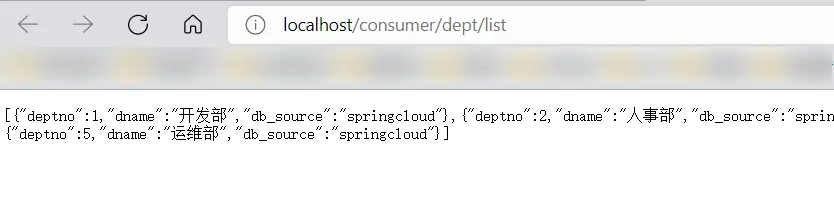

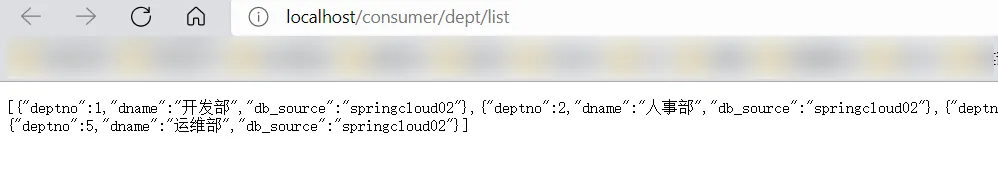

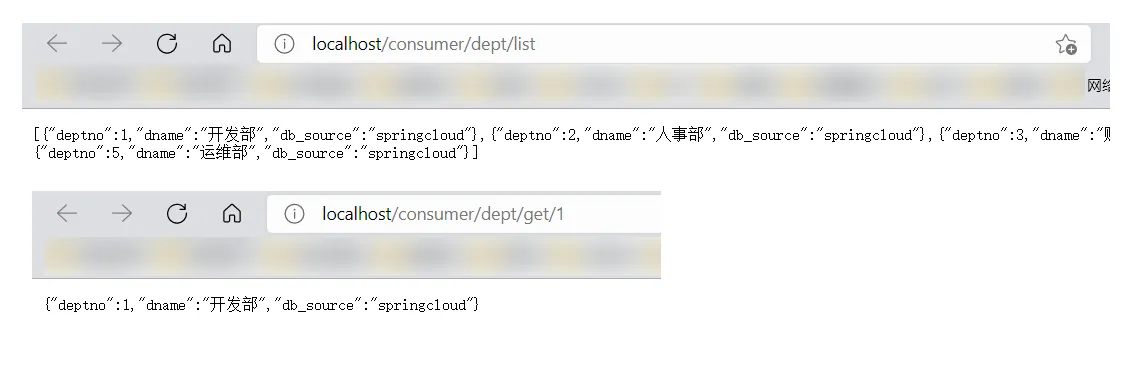

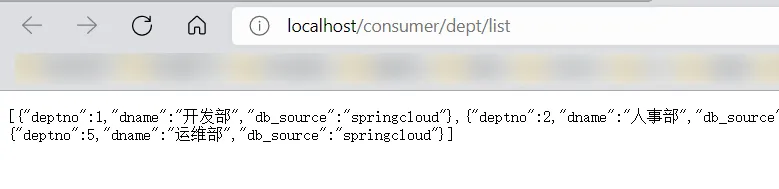

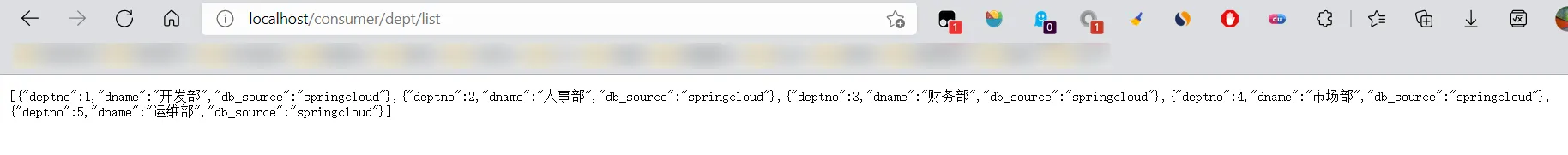

    @RequestMapping("/consumer/dept/list")
    public List<Dept> list(){
        return
                restTemplate.getForObject(REST_URL_PREFIX+"/dept/list",List.class);
    }
}

1
2
3
4
5
6

@SpringBootApplication
public class DeptConsumer80 {
    public static void main(String[] args) {
        SpringApplication.run(DeptConsumer80.class,args);
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloud</artifactId>
        <groupId>com.github</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>springcloud-eureka-7001</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <dependencies>
        <!-- eureka-server服务端 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka-server</artifactId>
            <version>1.4.6.RELEASE</version>
        </dependency>
        <!--热部署-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
        </dependency>
    </dependencies>

</project>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

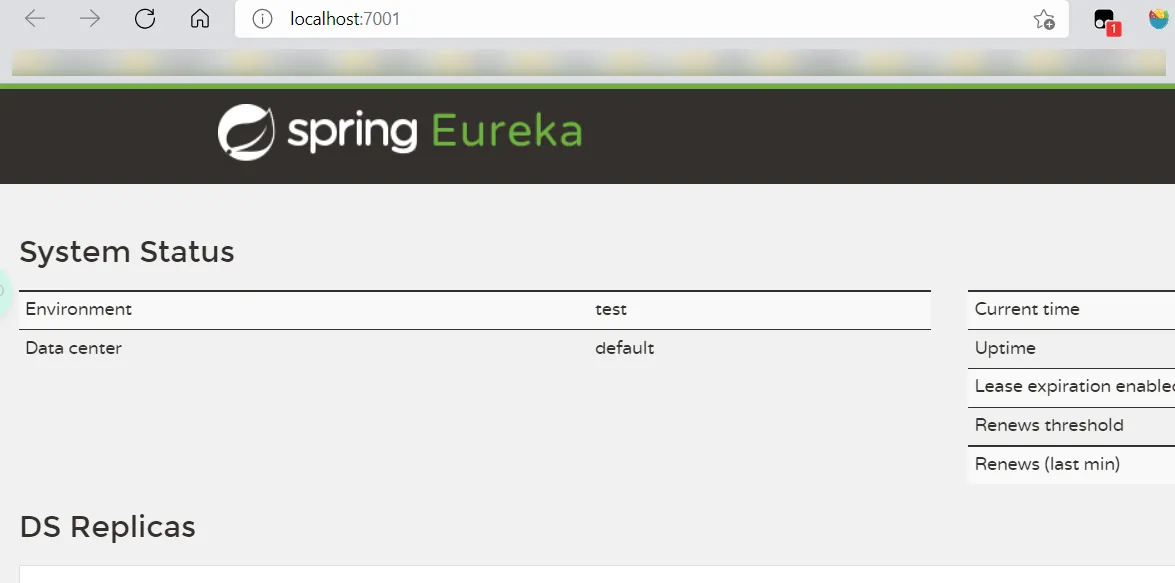

server:
  port: 7001

# Eureka配置
eureka:
  instance:
    hostname: localhost #eureka服务端的实例名称
  client:
    register-with-eureka: false #是否将自己注册到Eureka服务器中，本身是服务器，无需注册
    fetch-registry: false #false表示自己端就是注册中心，职责是维护服务实例，并不需要检索服务
    service-url:
      defaultzone: http://${eureka.instance.hostname}:${server.port}/eureka/
      # 设置与Eureka Server交互的地址查询服务和注册服务都需要依赖这个defaultzone地址

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

package com.github;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

@SpringBootApplication
@EnableEurekaServer // EurekaServer服务端启动类，接受其他微服务注册进来
public class EurekaServer7001 {
    public static void main(String[] args){
        SpringApplication.run(EurekaServer7001.class,args);
    }
}

1
2
3
4
5
6
7

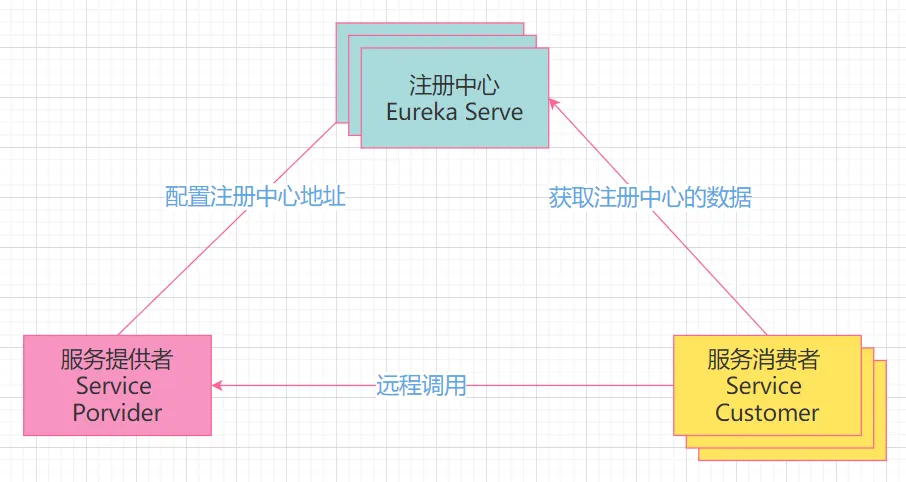

<!--将服务的provider注册到eureka中-->
<!-- https://mvnrepository.com/artifact/org.springframework.cloud/spring-cloud-starter-eureka -->
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-eureka</artifactId>
    <version>1.4.6.RELEASE</version>
</dependency>

1
2
3
4
5

# Eureka配置：配置服务注册中心地址
eureka:
  client:
    service-url:
      defaultZone: http://localhost:7001/eureka/

1
2
3
4
5
6
7

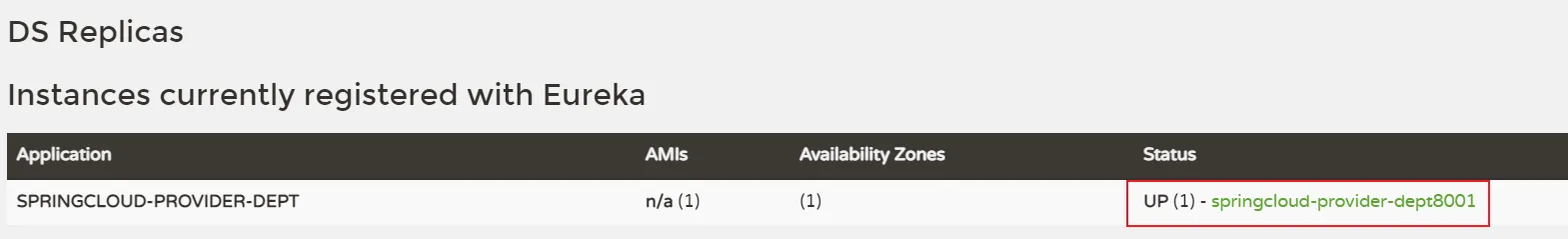

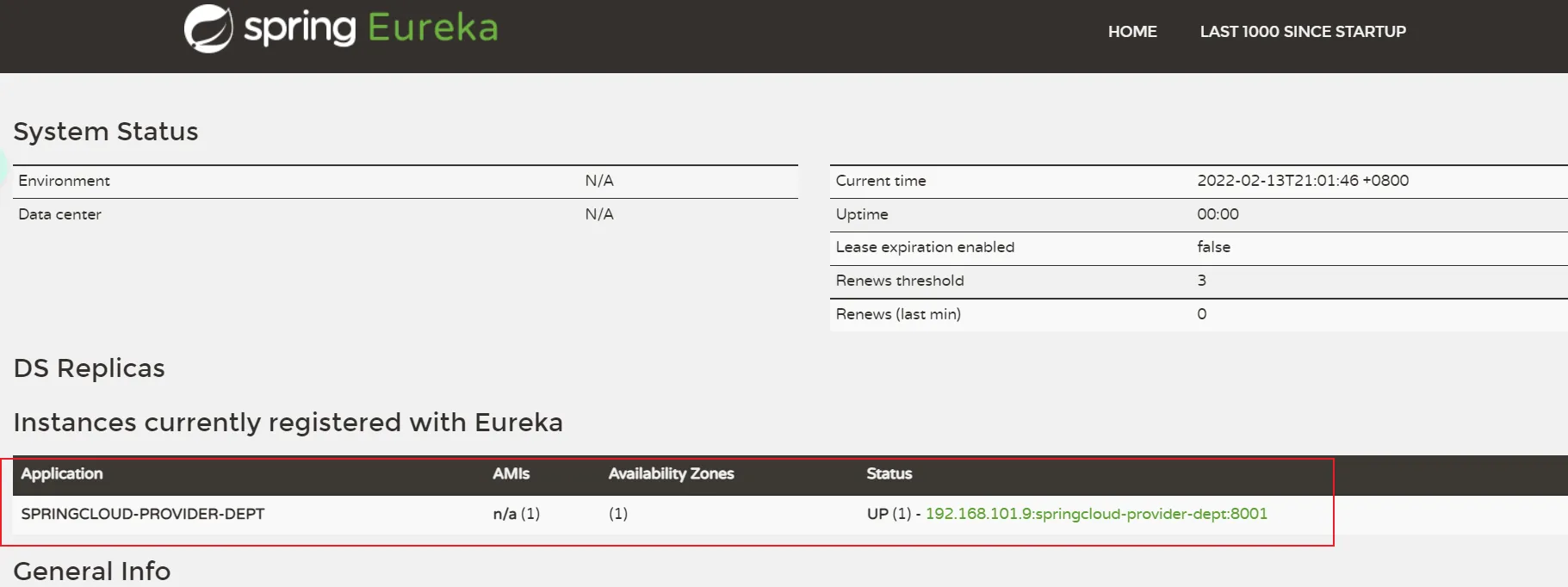

@SpringBootApplication
@EnableEurekaClient // 本服务启动之后会自动注册进Eureka中！
public class DeptProvider8001 {
    public static void main(String[] args) {
        SpringApplication.run(DeptProvider8001.class,args);
    }
}

1
2
3
4
5
6
7

# Eureka配置：配置服务注册中心地址
eureka:
  client:
    service-url:
      defaultZone: http://localhost:7001/eureka/
  instance:
    instance-id: springcloud-provider-dept8001 # 与client平级

1
2
3
4
5
6
7
8

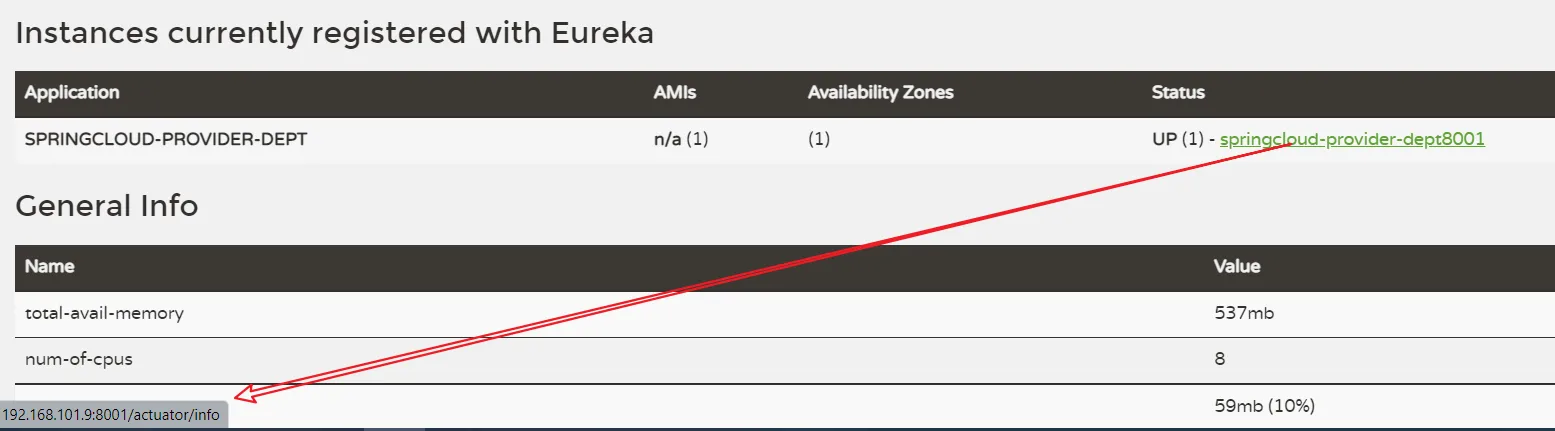

# Eureka配置：配置服务注册中心地址
eureka:
  client:
    service-url:
      defaultZone: http://localhost:7001/eureka/
  instance:
    instance-id: springcloud-provider-dept8001 # 与client平级
    prefer-ip-address: true # true表示访问路径可以显示IP地址

1
2
3
4
5

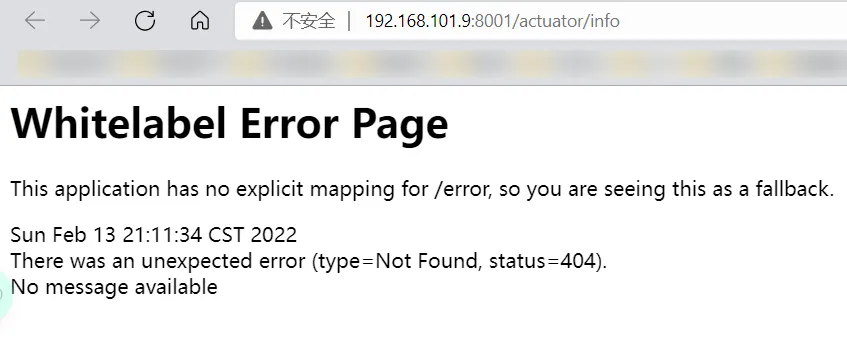

<!--actuator监控信息完善-->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-actuator</artifactId>
</dependency>

1
2
3
4

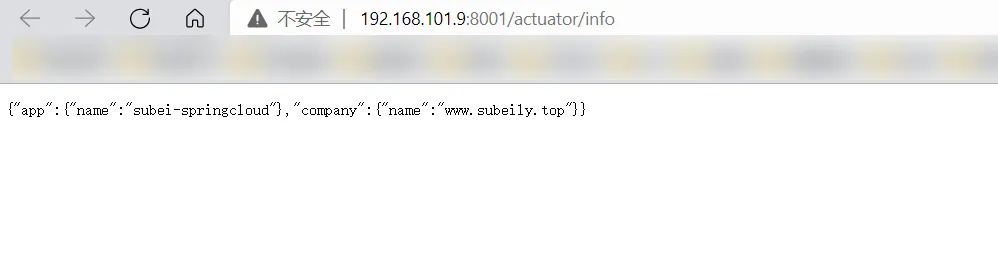

# info配置
info:
  app.name: subei-springcloud  # 项目的名称
  company.name: www.subeily.top  # 公司的名称

1
2
3
4
5

management:
  endpoints:
    web:
      exposure:
        include: "*"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

/**

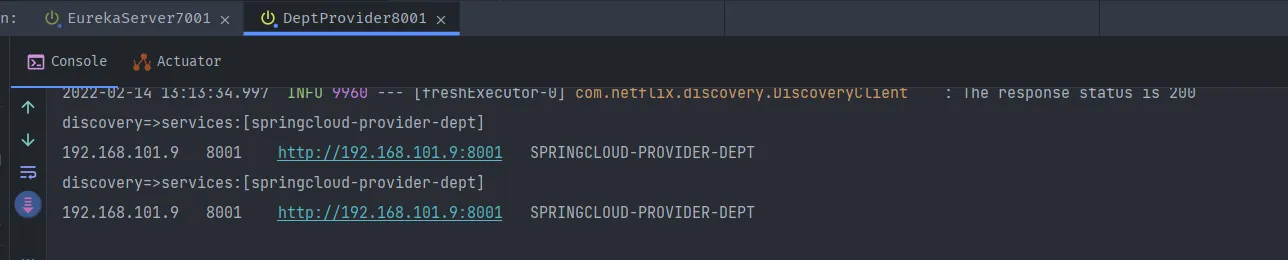

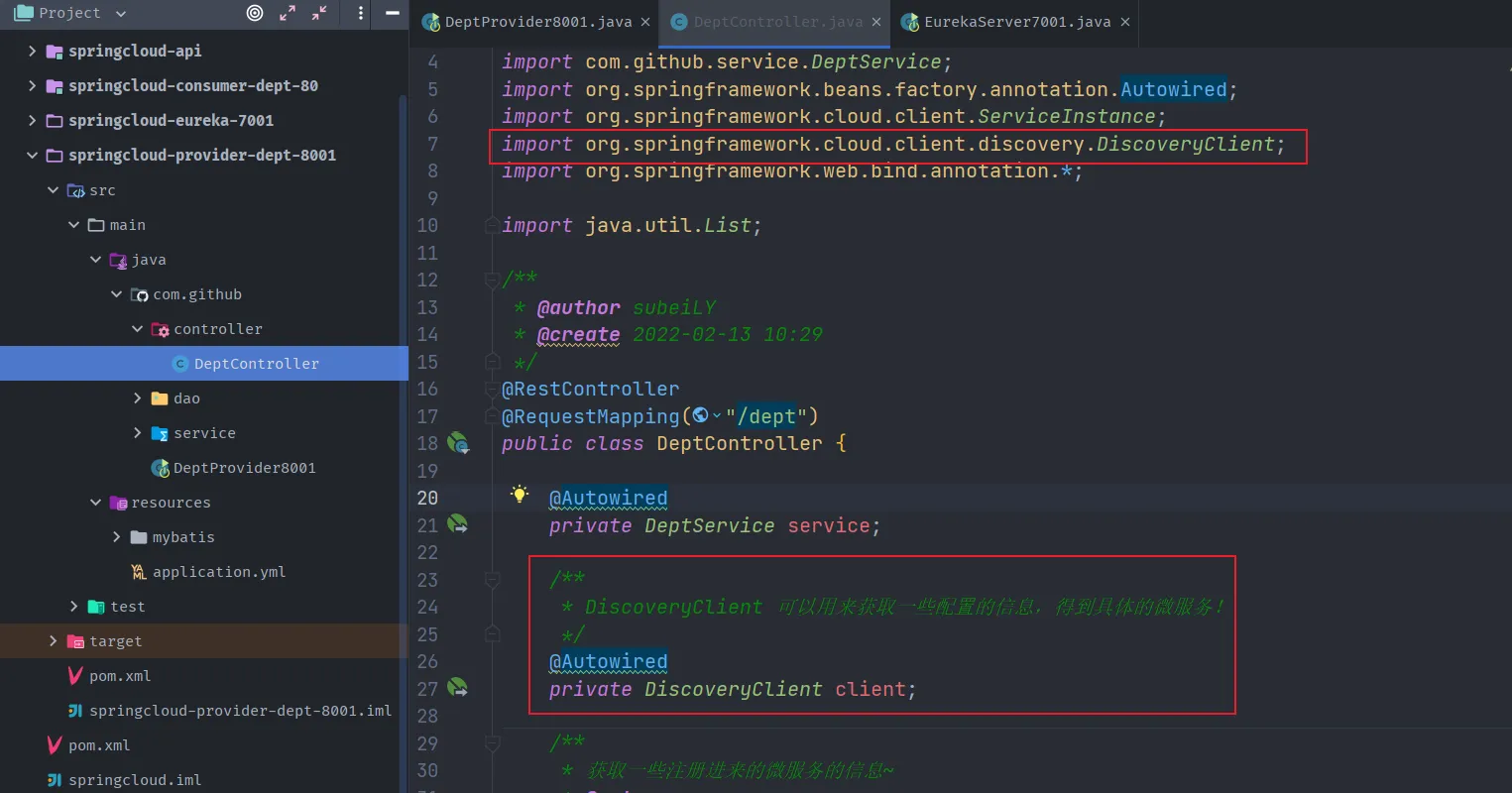

  * DiscoveryClient 可以用来获取一些配置的信息，得到具体的微服务！
  */
@Autowired
private DiscoveryClient client;

/**
  * 获取一些注册进来的微服务的信息~
  * @return
  */

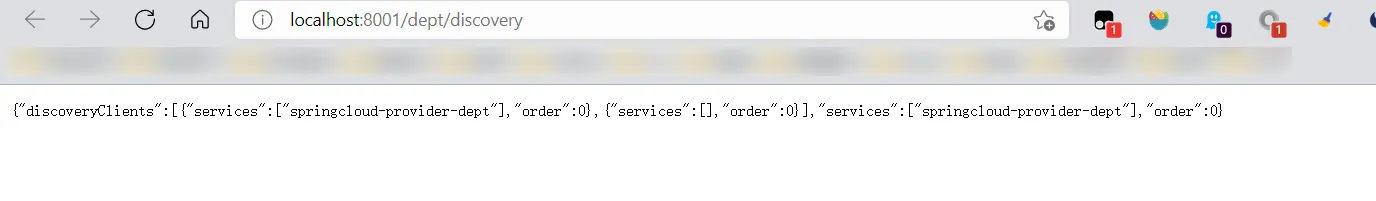

@GetMapping("/discovery")
public Object discovery() {
    // 获取微服务列表的清单
    List<String> services = client.getServices();
    System.out.println("discovery=>services:" + services);
    // 得到一个具体的微服务信息,通过具体的微服务id，applicaioinName；
    List<ServiceInstance> instances = client.getInstances("SPRINGCLOUD-PROVIDER-DEPT");
    for (ServiceInstance instance : instances) {
        System.out.println(
            instance.getHost() + "\t" + // 主机名称
            instance.getPort() + "\t" + // 端口号
            instance.getUri() + "\t" + // uri
            instance.getServiceId() // 服务id
        );
    }
    return this.client;
}

1
2
3
4

@GetMapping("/consumer/dept/discovery")
public Object discovery(){
    return restTemplate.getForObject(REST_URL_PREFIX+"/dept/discovery",Object.class);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

<dependencies>
    <!-- eureka-server服务端 -->
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-eureka-server</artifactId>
        <version>1.4.6.RELEASE</version>
    </dependency>
    <!--热部署-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-devtools</artifactId>
    </dependency>
</dependencies>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

server:
  port: 7003

# Eureka配置
eureka:
  instance:
    hostname: localhost #eureka服务端的实例名称
  client:
    register-with-eureka: false #是否将自己注册到Eureka服务器中，本身是服务器，无需注册
    fetch-registry: false #false表示自己端就是注册中心，职责是维护服务实例，并不需要检索服务
    service-url:
      defaultzone: http://${eureka.instance.hostname}:${server.port}/eureka/
      # 设置与Eureka Server交互的地址查询服务和注册服务都需要依赖这个defaultzone地址

1
2
3
4
5
6
7

@SpringBootApplication
@EnableEurekaServer // EurekaServer服务端启动类，接受其他微服务注册进来
public class EurekaServer7003 {
    public static void main(String[] args){
        SpringApplication.run(EurekaServer7003.class,args);
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

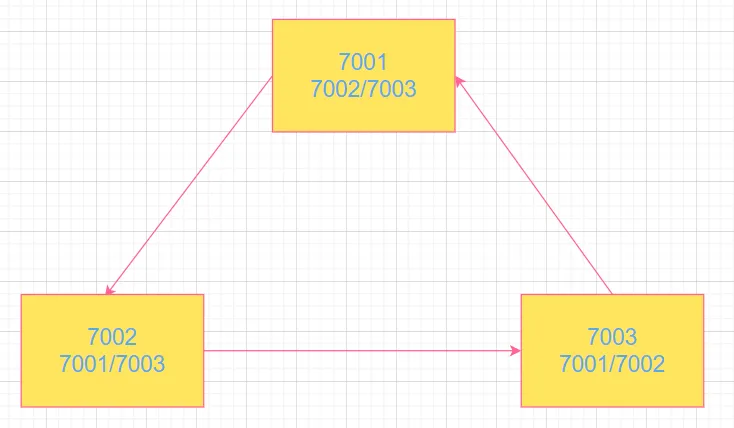

server:
  port: 7001

# Eureka配置
eureka:
  instance:

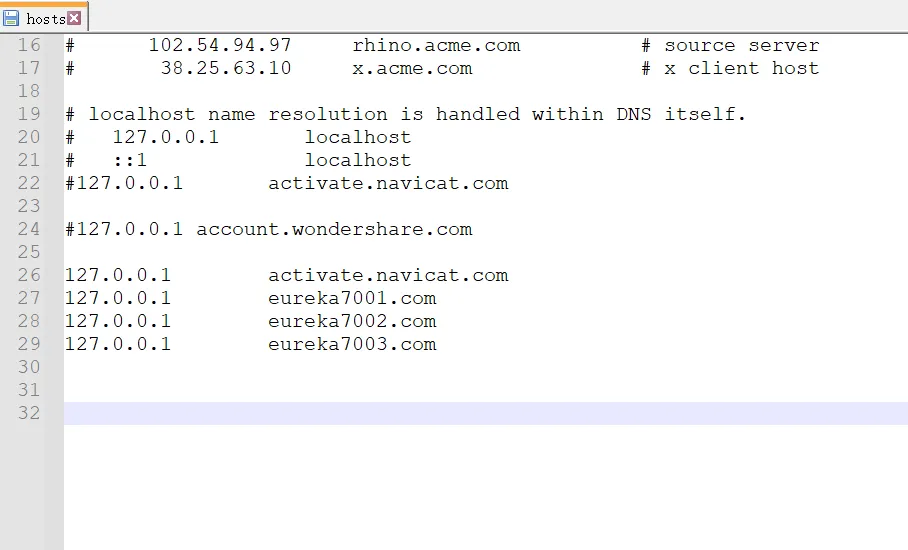

    hostname: eureka7001.com #eureka服务端的实例名称
  client:
    register-with-eureka: false #是否将自己注册到Eureka服务器中，本身是服务器，无需注册
    fetch-registry: false #false表示自己端就是注册中心，职责是维护服务实例，并不需要检索服务
    service-url:
      # 单机 defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/
      # 设置与Eureka Server交互的地址查询服务和注册服务都需要依赖这个defaultZone地址
      defaultZone: http://eureka7002.com:7002/eureka/,http://eureka7003.com:7003/eureka/

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

server:
  port: 7002

# Eureka配置
eureka:
  instance:
    hostname: eureka7002.com #eureka服务端的实例名称
  client:
    register-with-eureka: false #是否将自己注册到Eureka服务器中，本身是服务器，无需注册
    fetch-registry: false #false表示自己端就是注册中心，职责是维护服务实例，并不需要检索服务
    service-url:
      # 单机 defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/
      # 设置与Eureka Server交互的地址查询服务和注册服务都需要依赖这个defaultZone地址
      defaultZone: http://eureka7001.com:7001/eureka/,http://eureka7003.com:7003/eureka/

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

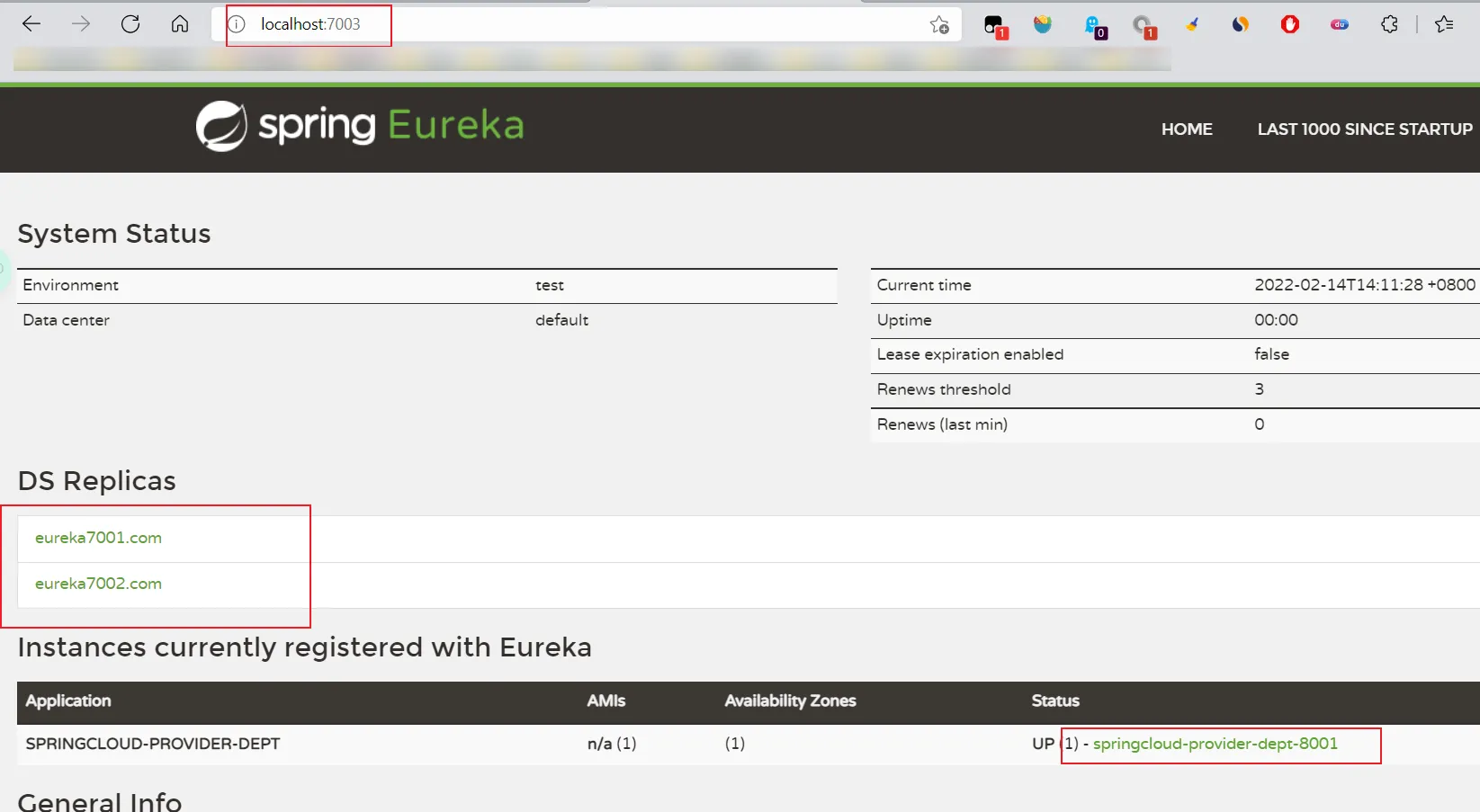

server:
  port: 7003

# Eureka配置
eureka:
  instance:
    hostname: eureka7003.com #eureka服务端的实例名称
  client:
    register-with-eureka: false #是否将自己注册到Eureka服务器中，本身是服务器，无需注册
    fetch-registry: false #false表示自己端就是注册中心，职责是维护服务实例，并不需要检索服务
    service-url:
      # 单机 defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/
      # 设置与Eureka Server交互的地址查询服务和注册服务都需要依赖这个defaultZone地址
      defaultZone: http://eureka7001.com:7001/eureka/,http://eureka7002.com:7002/eureka/

1
2
3
4
5
6
7
8
9

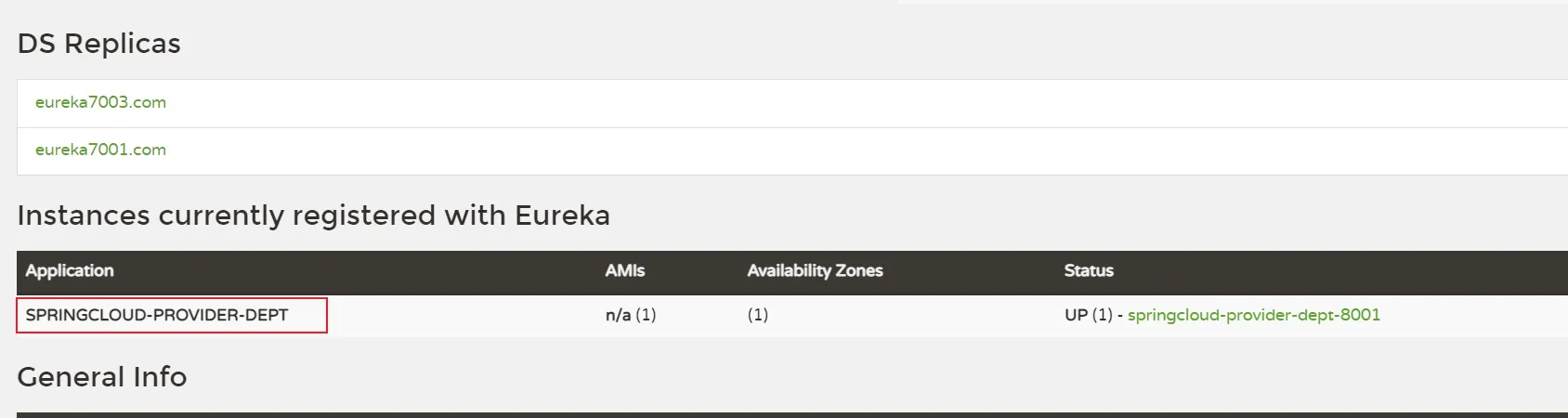

# Eureka配置：配置服务注册中心地址
eureka:
  client:
    service-url:
      # 注册中心地址7001-7003
      defaultZone: http://eureka7001.com:7001/eureka/,http://eureka7002.com:7002/eureka/,http://eureka7003.com:7003/eureka/
  instance:

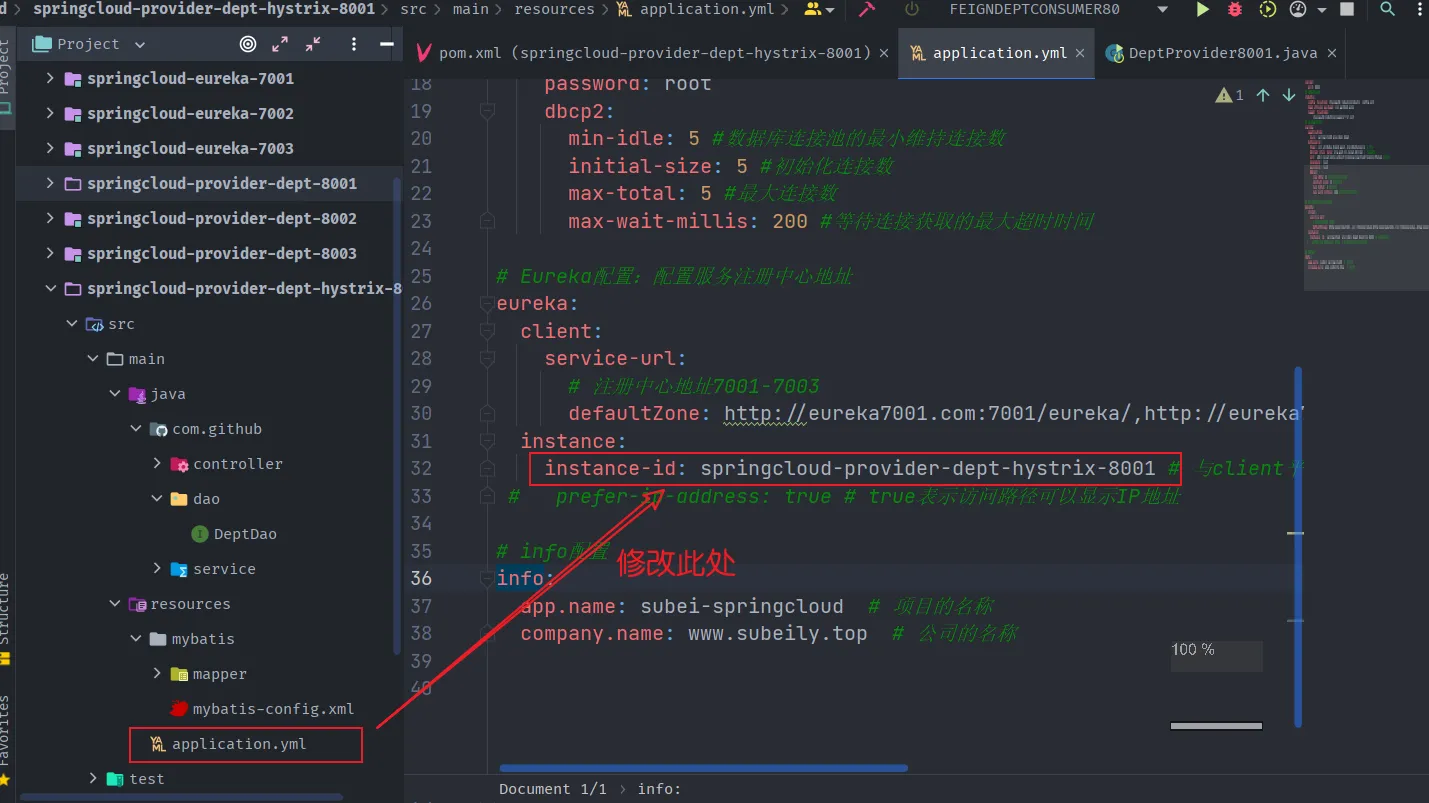

    instance-id: springcloud-provider-dept-8001 # 与client平级
 #   prefer-ip-address: true # true表示访问路径可以显示IP地址

1
2

  instance:
    instance-id: springcloud-provider-dept-8003 # 与client平级

1
2

application:
  name: springcloud-provider-dept

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41

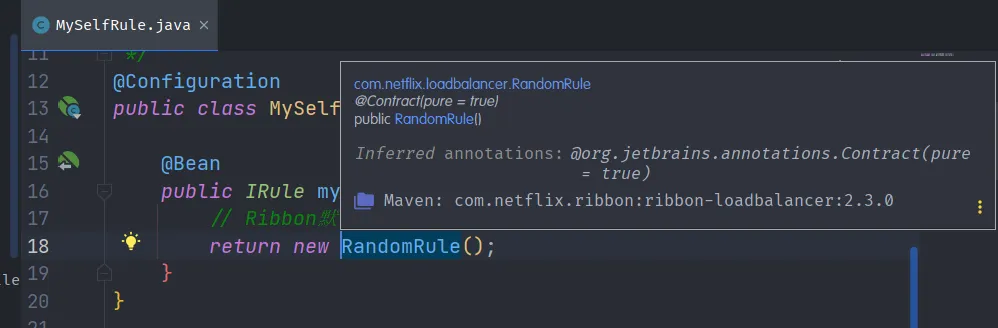

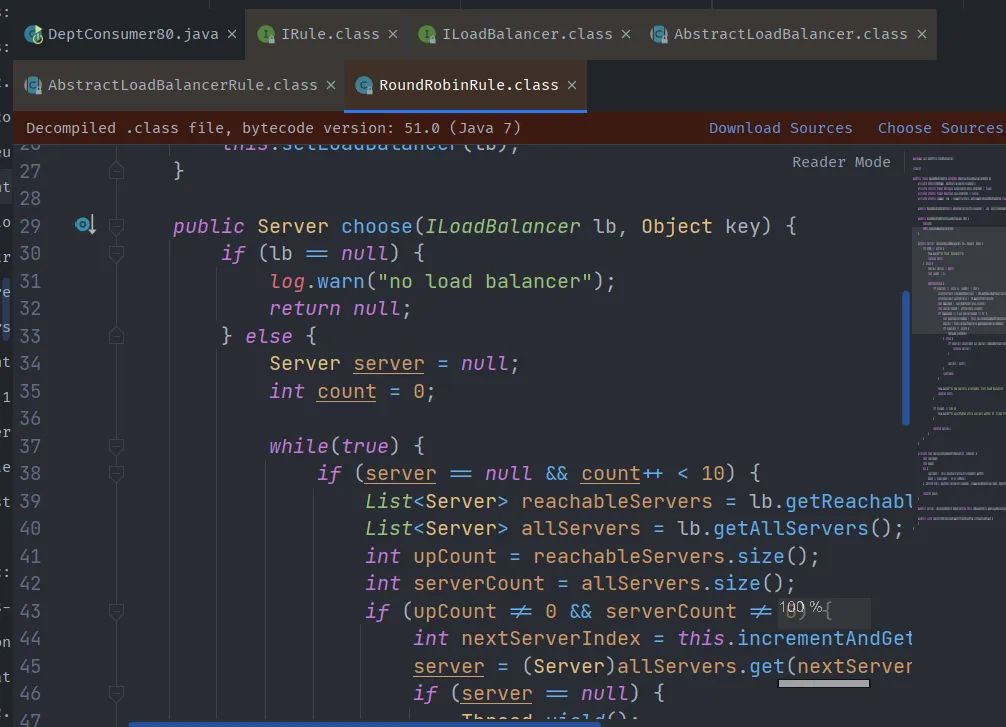

public Server choose(ILoadBalancer lb, Object key) {
    if (lb == null) {
        log.warn("no load balancer");
        return null;
    } else {
        Server server = null;
        int count = 0;

        while(true) {
            if (server == null && count++ < 10) {
                List<Server> reachableServers = lb.getReachableServers();
                List<Server> allServers = lb.getAllServers();
                int upCount = reachableServers.size();
                int serverCount = allServers.size();
                if (upCount != 0 && serverCount != 0) {
                    int nextServerIndex = this.incrementAndGetModulo(serverCount);
                    server = (Server)allServers.get(nextServerIndex);
                    if (server == null) {
                        Thread.yield();
                    } else {
                        if (server.isAlive() && server.isReadyToServe()) {
                            return server;
                        }

                        server = null;
                    }
                    continue;
                }

                log.warn("No up servers available from load balancer: " + lb);
                return null;
            }

            if (count >= 10) {
                log.warn("No available alive servers after 10 tries from load balancer: " + lb);
            }

            return server;
        }
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

/**
     * IRule:
     * RoundRobinRule 轮询策略
     * RandomRule 随机策略
     * AvailabilityFilteringRule ： 会先过滤掉，跳闸，访问故障的服务~，对剩下的进行轮询~
     * RetryRule ： 会先按照轮询获取服务~，如果服务获取失败，则会在指定的时间内进行，重试
     */
@Bean
public IRule myRule() {
    return new RandomRule();//使用随机策略
    // return new RoundRobinRule();//使用轮询策略
    // return new AvailabilityFilteringRule();//使用轮询策略
    // return new RetryRule();//使用轮询策略
}

1

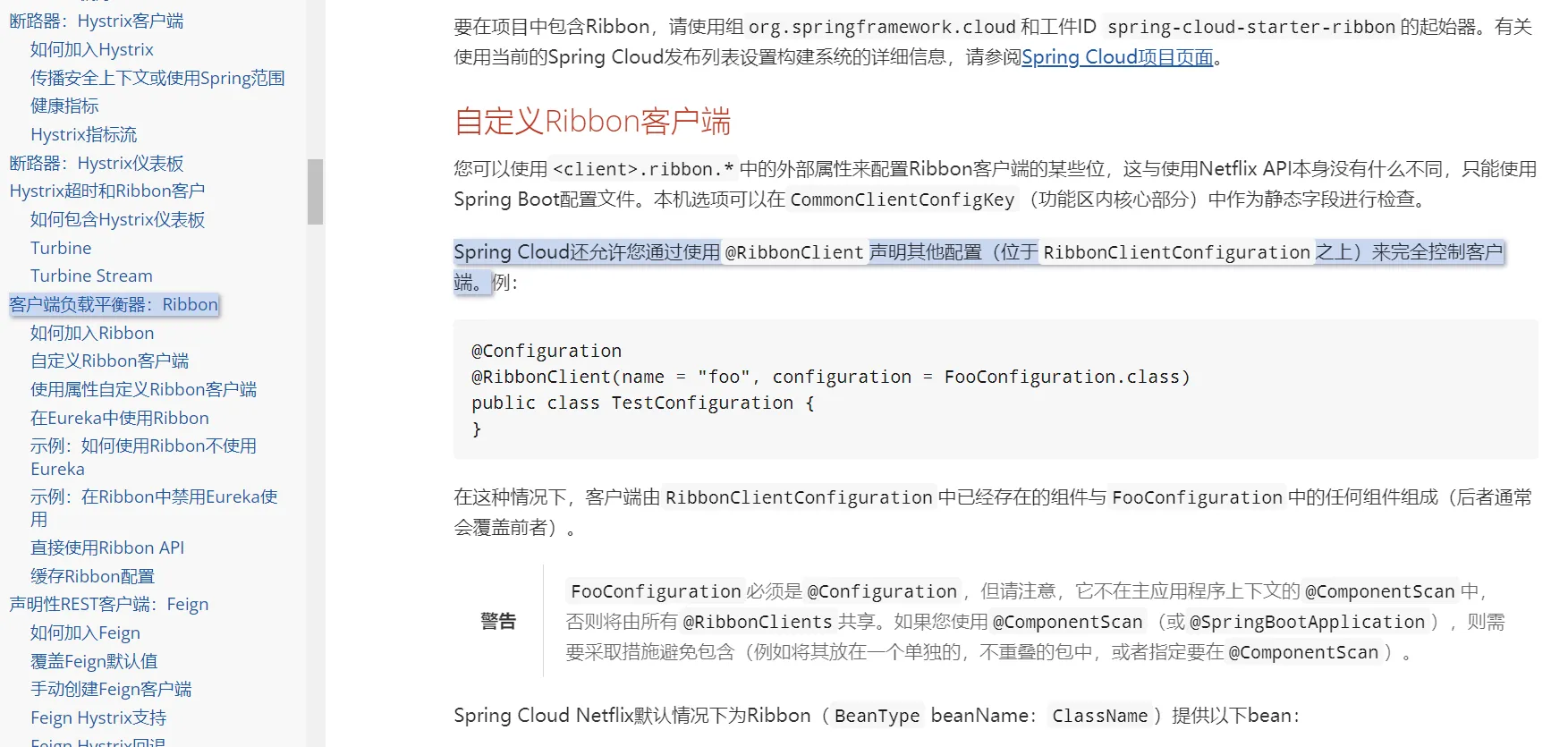

@RibbonClient(name="SPRINGCLOUD-PROVIDER-DEPT",configuration=MySelfRule.class)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

@Configuration
public class MySelfRule {

    /**
     * IRule:
     * RoundRobinRule 轮询策略
     * RandomRule 随机策略
     * AvailabilityFilteringRule ： 会先过滤掉，跳闸，访问故障的服务~，对剩下的进行轮询~
     * RetryRule ： 会先按照轮询获取服务~，如果服务获取失败，则会在指定的时间内进行，重试
     */
    @Bean
    public IRule myRule() {
        return new RandomRule();//使用随机策略
        // return new RoundRobinRule();//使用轮询策略
        // return new AvailabilityFilteringRule();//使用轮询策略
        // return new RetryRule();//使用轮询策略
    }
}

1
2
3
4
5
6
7
8

@SpringBootApplication
@EnableEurekaClient // 开启Eureka 客户端
@RibbonClient(name="SPRINGCLOUD-PROVIDER-DEPT",configuration= MySelfRule.class)
public class DeptConsumer80 {
    public static void main(String[] args) {
        SpringApplication.run(DeptConsumer80.class,args);
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58

public class RandomRule extends AbstractLoadBalancerRule {
    public RandomRule() {
    }

    @SuppressWarnings({"RCN_REDUNDANT_NULLCHECK_OF_NULL_VALUE"})
    // ILoadBalancer选择的随机算法
    public Server choose(ILoadBalancer lb, Object key) {
        if (lb == null) {
            return null;
        } else {
            Server server = null;

            while(server == null) {
                // 查看线程是否中断了
                if (Thread.interrupted()) {
                    return null;
                }

                // Reachable： 可及；可到达；够得到
                List<Server> upList = lb.getReachableServers(); // 活着的服务
                List<Server> allList = lb.getAllServers(); // 获取所有的服务
                int serverCount = allList.size();
                if (serverCount == 0) {
                    return null;
                }

                // 生成区间随机数！
                int index = this.chooseRandomInt(serverCount);
                // 从活着的服务中，随机取出一个
                server = (Server)upList.get(index);
                if (server == null) {
                    Thread.yield();
                } else {
                    if (server.isAlive()) {
                        return server;
                    }

                    server = null;
                    Thread.yield();
                }
            }

            return server;
        }
    }

    // 随机
    protected int chooseRandomInt(int serverCount) {
        return ThreadLocalRandom.current().nextInt(serverCount);
    }

    public Server choose(Object key) {
        return this.choose(this.getLoadBalancer(), key);
    }

    public void initWithNiwsConfig(IClientConfig clientConfig) {
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90

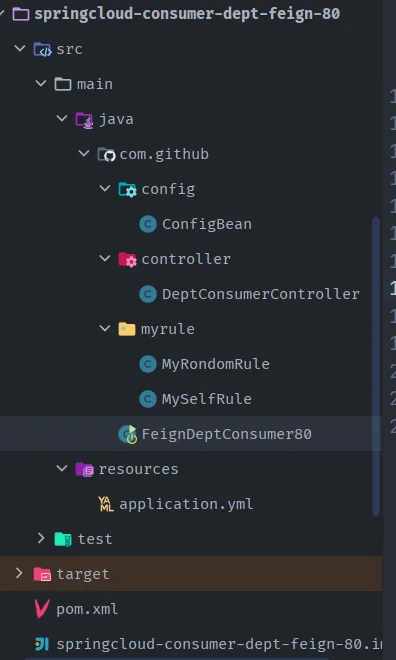

package com.github.myrule;

import com.netflix.client.config.IClientConfig;
import com.netflix.loadbalancer.AbstractLoadBalancerRule;
import com.netflix.loadbalancer.ILoadBalancer;
import com.netflix.loadbalancer.Server;

import java.util.List;
import java.util.concurrent.ThreadLocalRandom;

public class MyRondomRule extends AbstractLoadBalancerRule {
    public MyRondomRule() {
    }

    // total = 0 当total数等于5以后，我们指针才能往下走
    // index = 0 当前对外提供服务的服务器地址
    // 如果total等于5，则index+1，将total重置为0即可！
    // 问题：我们只有3台机器，所有total>3 则将total置为0；
    private int total = 0; //总共被调用的次数
    private int currentIndex = 0; //当前提供服务的机器序号！
    // ILoadBalancer选择的随机算法
    public Server choose(ILoadBalancer lb, Object key) {
        if (lb == null) {
            return null;
        } else {
            Server server = null;

            while(server == null) {
                // 查看线程是否中断了
                if (Thread.interrupted()) {
                    return null;
                }

                // Reachable： 可及；可到达；够得到
                List<Server> upList = lb.getReachableServers(); // 活着的服务
                List<Server> allList = lb.getAllServers(); // 获取所有的服务
                int serverCount = allList.size();
                if (serverCount == 0) {
                    return null;
                }

                // 生成区间随机数！
//                int index = this.chooseRandomInt(serverCount);
                // 从活着的服务中，随机取出一个
//                server = (Server)upList.get(index);

                // =====================================
                if (total<5){
                    server = upList.get(currentIndex);
                    total++;
                }else {
                    total = 0;
                    currentIndex++;
                    if (currentIndex>=upList.size()){
                        currentIndex = 0;
                    }
                    server = upList.get(currentIndex);
                }
                // =====================================

                if (server == null) {
                    Thread.yield();
                } else {
                    if (server.isAlive()) {
                        return server;
                    }

                    server = null;
                    Thread.yield();
                }
            }

            return server;
        }
    }

    // 随机
    protected int chooseRandomInt(int serverCount) {
        return ThreadLocalRandom.current().nextInt(serverCount);
    }

    @Override
    public Server choose(Object key) {
        return this.choose(this.getLoadBalancer(), key);
    }

    @Override
    public void initWithNiwsConfig(IClientConfig clientConfig) {
    }
}

1
2
3
4
5
6
7
8
9

@Configuration
public class MySelfRule {

    @Bean
    public IRule myRule(){
        // Ribbon默认是轮询，可以自定义为随机算法
        return new MyRondomRule();
    }
}

1
2
3
4
5
6

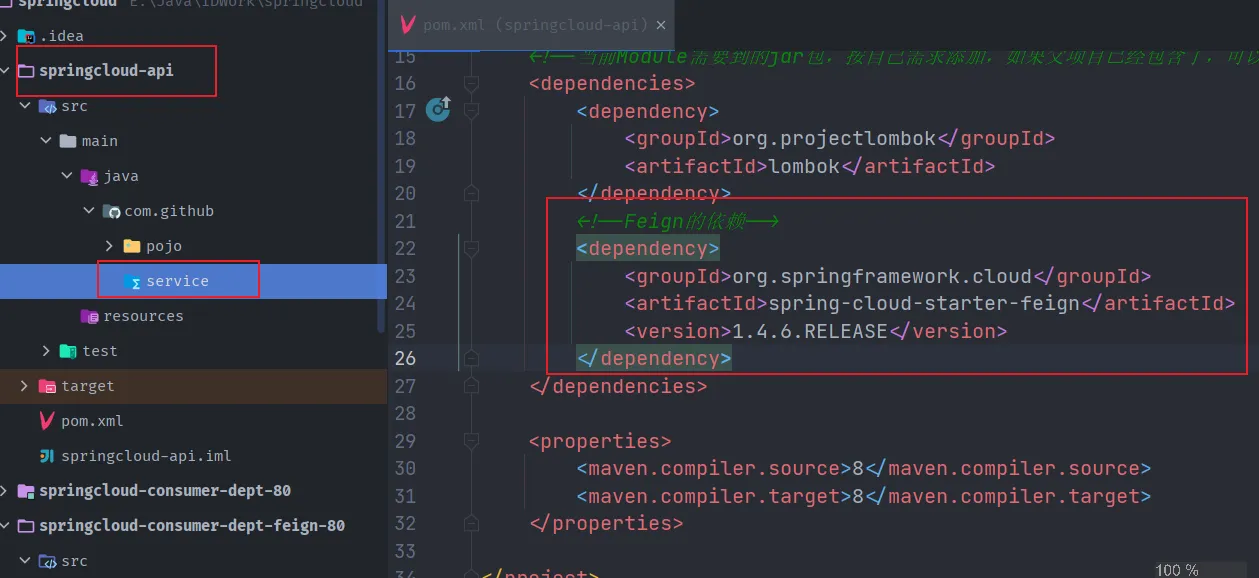

<!--Feign的依赖-->
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-feign</artifactId>
    <version>1.4.6.RELEASE</version>
</dependency>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

@FeignClient(value = "SPRINGCLOUD-PROVIDER-DEPT")
public interface DeptClientService {
    @GetMapping("/dept/get/{id}")
    public Dept queryById(@PathVariable("id") Long id); //根据id查询部门

    @GetMapping("/dept/list")
    public List<Dept> queryAll(); //查询所有部门

    @PostMapping(value = "/dept/add")
    public boolean addDept(Dept dept); //添加一个部门

}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

@RestController
public class DeptConsumerController {

    /**
     * 理解：消费者，不应该有service层~
     * RestTemplate .... 供我们直接调用就可以了！ 注册到Spring中
     * (地址：url, 实体：Map ,Class<T> responseType)
     * <p>
     * 提供多种便捷访问远程http服务的方法，简单的Restful服务模板~
     */
    @Autowired
    private DeptClientService service;

    /**
     * 消费方添加部门信息
     * @param dept
     * @return
     */
    @RequestMapping("/consumer/dept/add")
    public boolean add(Dept dept){
        return this.service.addDept(dept);
    }

    /**
     * 消费方根据id查询部门信息
     * @param id
     * @return
     */
    @RequestMapping("/consumer/dept/get/{id}")
    public Dept get(@PathVariable("id") Long id){
        return this.service.queryById(id);
    }

    /**
     * 消费方查询部门信息列表
     * @return
     */
    @RequestMapping("/consumer/dept/list")
    public List<Dept> list(){
        return this.service.queryAll();
    }

}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

@SpringBootApplication
@EnableEurekaClient
// feign客户端注解,并指定要扫描的包以及配置接口DeptClientService
@EnableFeignClients(basePackages = {"com.github.service"})
// 切记不要加这个注解，不然会出现404访问不到
// @ComponentScan("com.github.service")
public class FeignDeptConsumer80 {
    public static void main(String[] args) {
        SpringApplication.run(FeignDeptConsumer80.class, args);
    }
}
